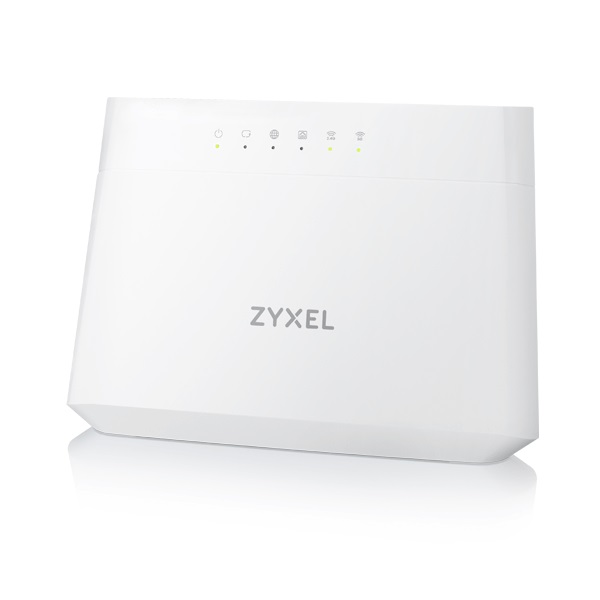

Zyxel VMG3625-T50B Dual Band Wireless 35b AC/N VDSL2 Combo WAN Gigabit Gateway

Zyxel VMG3625-T50B Dual Band Wireless 35b AC/N VDSL2 Combo WAN Gigabit Gateway The Zyxel VMG3625-T50B provides high-speed Internet access to meet the worldwide market requirements for triple-play services. Featuring the built-in 2x2 802.11ac WLAN function that relieves troublesome wirings, this model offers extreme coverage for great WiFi user experience. Moreover, the user-oriented design allows this model to meet every customer’s own style while providing powerful and practical functions.

AC1200, dual-band WiFi with 867 Mbps* 802.11ac 2x2 Wave 2 technology

TR-069 remote management (Data model: TR-098/TR-181)

USB 2.0 high throughput for file sharing

Excellent routing and QoS capability to prioritize applications as needed

NAT, firewall with SPI and DoS for better security

Stand-alone and wall mountable

VDSL2 supports super vectoring up to profile 35b

Benefits

Ultra speed for UHD IPTV service

The Zyxel VMG3625-T50B supports broadband access performance, which further enables operators to offer better UHD 4k IPTV services.

The triple-play powerhouse

The Zyxel VMG3625-T50B is built with sophisticated QoS and multicast traffic shaping features like IGMP v1/2/3 snooping and VLAN capabilities for premium video delivery services. To wireless IPTV operators, its built-in 2x2, 802.11ac chip is the top choice.

Carrier-class WiFi for seamless mobility

Rated as AC1200, the Zyxel VMG3625-T50B delivers speeds of up to 867 Mbps* over 5 GHz and 300 Mbps* over 2.4 GHz. For better user experience, four models offer dual-band, d WiFi with performance-boosting features such as Multi-User MIMO (MU-MIMO) and Beamforming for simultaneous, lag-free streaming and gaming experiences. In addition, its ability to create multiple WiFi networks with up to 4 SSIDs helps operators to easily create individual WLAN networks for video, data and guests.

TR-069 remote management with TR-181 issue-2 support

The Zyxel VMG3625-T50B supports TR-69 that simplifies remote configuration, upgrade and management and therefore improves cost effectiveness and customer satisfaction. Additional support to the latest TR-181 issue-2 data model also enhances service providers’ visibility on subscriber LAN networks for improved customer assistance.

Wireless Standard

802.11 b/g/n/ac 2.4 GHz, data rate 300 Mbps

802.11 a/n/ac 5 GHz, data rate 867 Mbps

Router/Bridge Features

IEEE 802.1D transparent bridge & basic spanning tree

PPPoE (RFC 2516)

PPPoA (RFC 2364)

MAC encapsulation routing/IPoE

Network Address Translation (NAT)

NAT virtual server (port forwarding)

DHCP client/server/relay with DHCP option 43/60/61/125

DNS proxy/dynamic DNS

Static/Policy route

IGMP v1, v2, v3

IPv4/IPv6

Wireless

Wireless Protected Setup (WPS)

WMM

WPA2/WPA2-PSK with TKIP & AES

Security type

Multi SSID: up to 4

MU-MIMO support

VLAN/QoS

802.1Q VLAN tagging/un-tagging

Support flexible traffic classification

Firewall & Security

Generic packet filter

DoS attack prevention

Parental control

USB

File sharing

3G back up with external 3G USB dongle

Management

Web/HTTP: 3 level log-in via SSH or Telnet

Firmware upgrade via Web/TFTP/FTP/TR-069 RPC method

Text based configuration

Configuration backup/update/restore default via Web

Configurable access control for remote management (interface and/port number)

DSL forum TR-069, TR-098

TR-111 and TR-181 i2

SNMP v1, v2

Rom-D support

UPnP port forwarding rules on page

VDSL

G.993.1 VDSL

G.993.2 VDSL2, Band 997, 998, Over POTS

Support VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b

G.vector

ADSL

G.992.1 (G.dmt)

G.992.2 (G.lite)

ANSI T1.413 compliant

G.992.3 (ADSL2)

G.992.5 (ADSL2+)

G.INP support

Hardware Specifications

WAN: One 10/100/1000 Mbps

Ethernet port RJ-45

Wireless:

Two internal antennas (2.4 GHz)

Two internal antennas (5 GHz)

Interface Description

Ethernet: four 10/100/1000 Mbps

Ethernet ports RJ-45 (8P8C)

USB: one USB 2.0 host

DSL: one RJ-11

Button

One Power on/off button

One reset button

One WPS on/off button

One WLAN on/off button

Status LEDs indicators

Power/System

WAN

Internet

LAN

WLAN-2.4G/WPS

WLAN-5G/WPS

Power Consumption

12 V DC/ 1.5 A

Package Content

Wireless IAD

Power adapter

Ethernet cable

Quick start guide

Safety warning card
