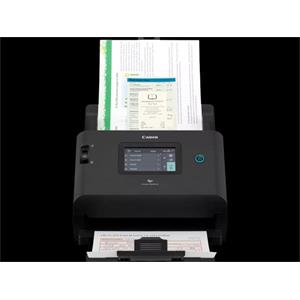

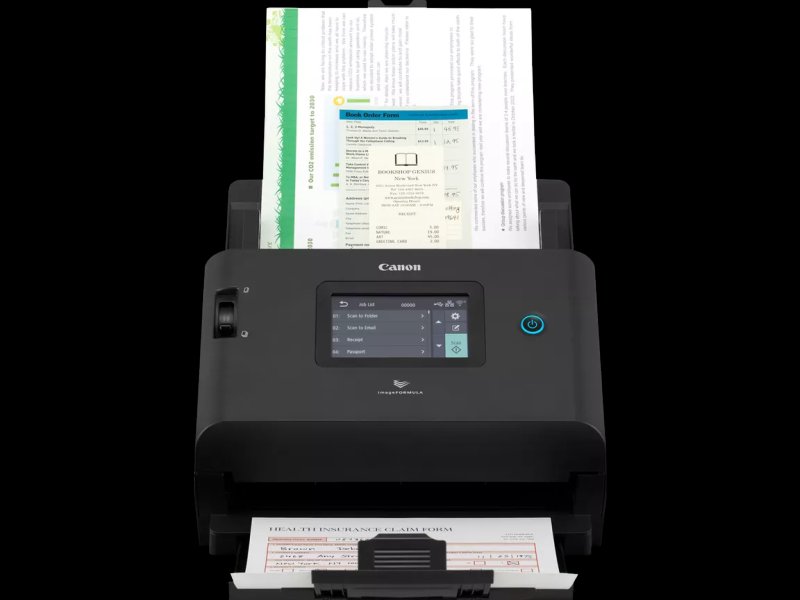

Canon imageFORMULA DR-S350NW

Canon imageFORMULA DR-S350NW Specifications

50ppm/100ipm scanning speed

60 sheets ADF capacity

4.3” colour LCD touch panel

Driverless scanning

CaptureOnTouch Lite Web software

Support for NFC readers

Direct scanning network function

Flexible connectivity with USB, LAN and WiFi

EPEAT Gold rated*

*US certification

Specifications in detail

Product Specifications

Type

Desktop type double-sided capturing sheet fed scanner

Scanning Sensor Unit

CIS

Optical Resolution

600dpi

Light Source

RGB LED

Scanning Side

Front / Back / Duplex

Interface

USB: USB3.2 Gen1, ?

Ethernet:10Base-T/100Base-TX/1000Base-T?

Wi-Fi: 802.11 b, g, n (2.4GHz) / 802.11 a, ac (5GHz)1

USB host:USB2.0 Type A (Only for NFC reader)?

Dimensions (WxDxH)

Tray closed: 291*267*242 mm

Weight

Approx. 3.4kg

Power Requirements

220 - 240V (50/60Hz)

Power Consumption

Scanning : 28W or less

In sleep mode : 2.0W

Power off : 0.3W or less

Operating Environment

10°C to 32.5°C Humidity: 20% to 80% RH

Environmental Compliance

Product: EPEAT Gold2, Energy STAR3, RoHS

Manufacturer: ISO 9001, ISO 14001, ISO 45001, ISO 13485, ESG

Certification (SGS)

Scanning Specifications

Black and White

50 ppm / 100 ipm

Colour

50ppm / 100ipm

Output Resolution

100/150/200/3240/300/400/600dpi

Output Mode

Colour, Grayscale, Black & White

Suggested Daily Volume

from 6,000 to 9,000 scans/day

Document Specifications

Width

50.8 - 216 mm

Length

54 - 356 mm

Thickness

27 g/m2 - 255g/m2 (0.04 - 0.3mm)

Pressure-Sensitive Paper

Feeding only from binding side.

Hole Punched Paper

Up to 8mm, 2/3/4 holes paper only.

Long Document Mode

Up to 5,588mm

Business Card Scanning

W:50-55mm L:85-91mm Thickness:128~255g/?(0.15-0.3mm),Horizontal feeding only

Plastic Card Scanning

W:86mm L:54mm Thickness:1.4mm or less?

Embossed card available. Loading number:3 cards(non-embossed)

1 card(embossed/non separation)

Passport Scanning

Thickness: 4.0mm or less - 300 dpi or less.

Need optional carrier sheet for passport and passport mode setting.

Paper Separation

Retard Roller Method

Feeder Capacity

A4: 60 sheets

Larger than A4: 40 sheets

Special Features

Special Features

Web scan (without driver)

Web browser scanning with any device on same network by embedded CaptureOnTouch Lite Web (Supports QR code connection, OCR recognition, Ultrasonic Double Feed Detection, Passport mode, Skip Blank Page, Auto Page Size Detection, Password protection)

Direct scan (without driver)

Direct job scanning from panel for standalone operation. (Scanto Share folder, FTP/FTPS/SFTP/, Mail, Printer. Supports OCR recognition, Image Preview, Ultrasonic Double Feed Detection, Passport mode, Skip Blank Page, Auto Page Size Detection)

Settings (with driver)

Ultrasonic Double Feed Detection, Auto Colour Detection, Skip Blank Page, Auto Page Size Detection, Auto Resolution Setting, Text Orientation, Recognition, Barcode/2D Code Recognition, OCR Recognition, Batch separation, Active Threshold, Text Enhancement (I/II), Deskew, Double Feed Release, Prescan, 3-Dimensional, Colour Correction, Prevent Bleed-Through/ Remove Background, Background Smoothing, Character Emphasis, Colour Dropout/Enhance (RGB), , MultiStream Function, Adjustable Gamma Settings, Moire Reduction, Folio Mode, Reduction ratio adjustment, B&W Contrast, Reverse Image, Rapid Recovery System.

Bundled Software

Windows

ISIS, TWAIN and WIA Driver / CaptureOnTouch Pro / Canon imageFORMULA Driver Setting Tool / IEEE 802.1X Setting Tool, / DR-Management Tool (by download only)/ CoT Admin Tool (by download only)

Supported Operating Systems

CaptureOnTouch Lite Web (device embedded web app) supports use with web browser from various operating systems. Mopria® certified for use with Android and Chrome OS.

Other Options

Consumables

Exchange Roller Kit

Accessories

Flatbed Scanner Unit 102

Flatbed Scanner Unit 202

A4 Carrier Sheet

Passport Carrier Sheet

All data is based on Canon standard testing methods except where indicated.

Subject to change without notice.

Geographic restrictions may apply dependant by region. Please check with your local Canon office on device availability

EPEAT GOLD is a US Certification

ENERGY STAR is not applicable in Europe
